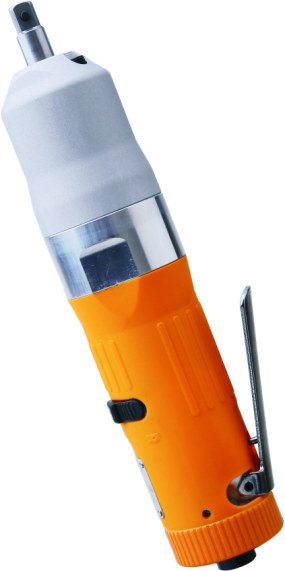

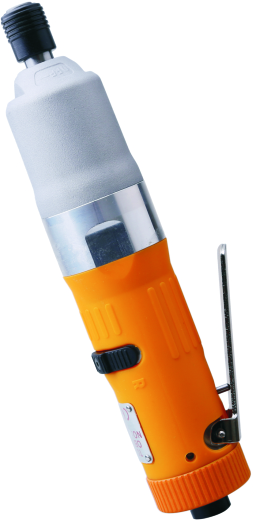

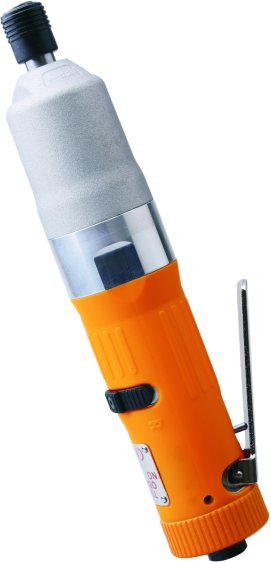

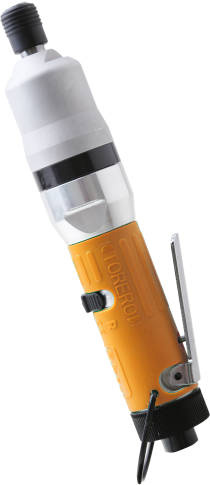

OBN直型失速式工具
| 图片 | 型号 | 螺栓直径 | 扭矩范围（Nm） | 套筒或起子 | 空转速度（rpm） | 全长 | 重量 | 进气口尺寸 | 推荐气管的内径 | 耗气量 | 噪音值 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0.5-0.6MPa | in | 0.4MPa | 0.5MPa | 0.6MPa | mm | kg | in | mm | m3/min | dB | |||
 |
OBN-40SD | 5-6 | 13-22 | 3/8 | - | 4700 | 5000 | 218 | 0.62 | PT 1/4 | 6.5 | 0.23 | 75 | |
 |
OBN-50SD | 6-8 | 22-35 | 3/8 | - | 5200 | 5500 | 218 | 0.74 | PT 1/4 | 6.5 | 0.35 | 78 | |
 |
OBN-60SD | 8-10 | 35-50 | 3/8 | - | 5600 | 6000 | 228 | 0.77 | PT 1/4 | 6.5 | 0.45 | 80 | |
 |
OBN-70SD | 10 | 45-65 | 3/8 | - | 5600 | 6000 | 240.5 | 0.87 | PT 1/4 | 8.0 | 0.45 | 84 | |
 |
OBN-80SD | 10 | 55-90 | 3/8 | - | 6600 | 7000 | 246.5 | 1.2 | PT 1/4 | 8.0 | 0.48 | 80 | |
 |
OBN-81SD | 10-12 | 60-95 | 1/2 | - | 6600 | 7000 | 251.5 | 1.25 | PT 1/4 | 8.0 | 0.48 | 80 | |
 |
OBN-30SH | 5 | 6-10 | 1/4 | 6200 | 6700 | 219 | 0.72 | PT 1/4 | 5.0 | 0.2 | 65 | ||
 |
OBN-40SH | 5-6 | 12-20 | 1/4 | - | 4800 | 5100 | 220.5 | 0.62 | PT 1/4 | 6.5 | 0.23 | 75 | |
 |
OBN-50SH | 6-8 | 18-30 | 1/4 | - | 5200 | 5400 | 220.5 | 0.74 | PT 1/4 | 6.5 | 0.35 | 78 | |
 |
OBN-60SH | 8 | 28-35 | 1/4 | - | 5600 | 6000 | 230.5 | 0.77 | PT 1/4 | 6.5 | 0.45 | 80 | |
 |
OBN-70SH | 8-10 | 30-40 | 1/4 | - | 5600 | 6000 | 240.5 | 0.87 | PT 1/4 | 8.0 | 0.45 | 84 | |
 |
OBN-80SH | 8-10 | 45-60 | 1/4 | - | 6600 | 7000 | 250 | 1.24 | PT 1/4 | 8.0 | 0.48 | 80 | |
