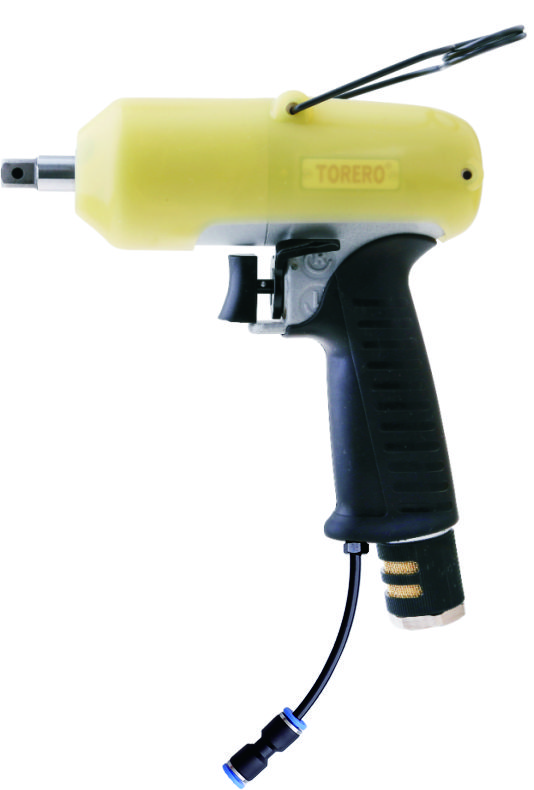

OBN series pistol type non shut-off air oil-pulse wrench/screwdriver
| Picture | Model No. | Bolt size | Torque Range(Nm) | Square drive | Free Speed(rpm) | Length | Weight | Air inlet | Rec. hose size | Air consumption | Noise level | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0.5-0.6MPa | in | 0.4MPa | 0.5MPa | 0.6MPa | mm | kg | in | mm | m3/min | dB | |||
![]() |
OBN-30PD-RE | 5-6 | 6-12 | 3/8 | - | 3700 | 4000 | 131 | 0.7 | PT 1/4 | 6.5 | 0.2 | 75 | |
![]() |
OBN-40PD-RE | 6 | 13-22 | 3/8 | - | 3700 | 4000 | 131 | 0.7 | PT 1/4 | 6.5 | 0.2 | 75 | |
![]() |
OBN-50PD-RE | 6-8 | 22-35 | 3/8 | - | 5700 | 6000 | 134 | 0.77 | PT 1/4 | 6.5 | 0.25 | 78 | |
![]() |
OBN-60PD-RE | 8-10 | 35-50 | 3/8 | - | 6200 | 6500 | 141 | 0.82 | PT 1/4 | 6.5 | 0.4 | 80 | |
![]() |
OBN-70PD-RE | 10 | 50-70 | 3/8 | - | 6200 | 6500 | 155 | 0.95 | PT 1/4 | 8.0 | 0.45 | 80 | |
![]() |
OBN-80PD-RE | 10 | 60-95 | 3/8 | - | 6500 | 6800 | 161.5 | 1.15 | PT 1/4 | 8.0 | 0.48 | 80 | |
![]() |
OBN-81PD-RE | 10-12 | 65-100 | 1/2 | - | 6500 | 6800 | 166.5 | 1.17 | PT 1/4 | 8.0 | 0.48 | 80 | |
![]() |
OBN-90PD-RE | 12 | 90-110 | 1/2 | - | 5200 | 5500 | 165 | 1.3 | PT 1/4 | 8.0 | 0.53 | 82 | |
![]() |
OBN-100PD-RE | 12-14 | 105-140 | 1/2 | - | 4200 | 4500 | 172 | 1.66 | PT 1/4 | 8.0 | 0.58 | 80 | |
![]() |
OBN-130PD-RE | 14 | 110-170 | 1/2 | - | 4000 | 4200 | 185 | 2.3 | PT 1/4 | 12.7 | 0.65 | 82 | |
![]() |
OBN-150PD-RE | 14-16 | 160-240 | 3/4 | - | 4000 | 4200 | 213.5 | 2.5 | PT 1/4 | 12.7 | 0.7 | 82 | |
![]() |
OBN-180PD-RE | 16-18 | 200-280 | 3/4 | - | 3300 | 3500 | 226.5 | 3.0 | PT 3/8 | 12.7 | 0.7 | 82 | |
![]() |
OBN-30PH-RE | 5-6 | 6-12 | 1/4 | - | 3700 | 4000 | 131 | 0.7 | PT 1/4 | 6.5 | 0.2 | 75 | |
![]() |
OBN-40PH-RE | 6 | 13-20 | 1/4 | - | 3700 | 4000 | 131 | 0.7 | PT 1/4 | 6.5 | 0.2 | 75 | |
![]() |
OBN-50PH-RE | 6-8 | 22-35 | 1/4 | - | 6200 | 6000 | 134 | 0.77 | PT 1/4 | 6.5 | 0.25 | 78 | |
![]() |
OBN-60PH-RE | 8 | 30-40 | 1/4 | - | 6200 | 6500 | 142 | 0.82 | PT 1/4 | 8.0 | 0.4 | 80 | |
![]() |
OBN-70PH-RE | 8-10 | 35-45 | 1/4 | - | 6200 | 6500 | 155 | 0.95 | PT 1/4 | 8.0 | 0.45 | 80 | |
![]() |
OBN-80PH-RE | 8-10 | 42-62 | 1/4 | - | 6500 | 6800 | 170 | 1.18 | PT1/4 | 8.0 | 0.48 | 80 | |
